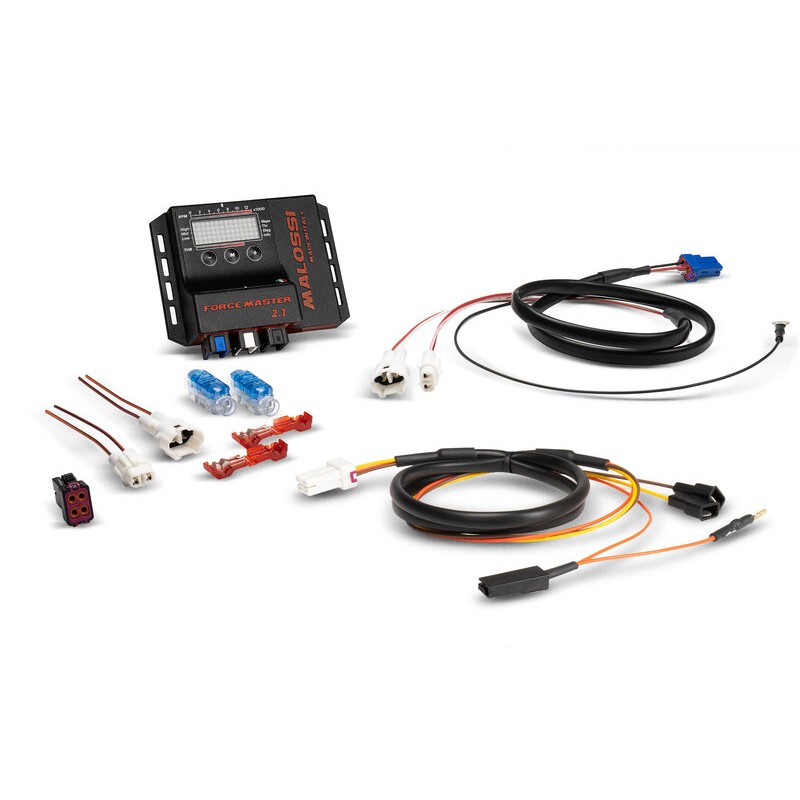

MALOS ECU

Force Master 2.1

Description

With a revamped design, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and user-friendly has always been one of Malossi’s objectives. Force Master 2.1 is a modern, efficient and high-performance product.

Equipped with an interface for K and CAN communication lines, a new user interface and a capacitive ignition input, the Force Master 2.1 is the ideal complement for managing vehicle performance. With no functional limitations, it allows the engine to be pushed beyond the limit imposed by the original rev limiter.

Technical specifications

• Fuel mixture adjustment: ± 14 % at low, medium and high revs.
• Rev limiter: +11,800 rpm.
• Temperature range: -30 °C to +80 °C.
• Minimum operating voltage: +7 V.
• Maximum operating voltage: +16 V.
• Average current draw: < 200 mA.
• Environmental protection: IP65.

Available programmes

• Curve 0: settings reset to zero.
• Curve 1: original exhaust, Malossi cylinder, original cylinder head, original camshaft and original filter.
• Curve 2: Malossi exhaust with DB-killer, Malossi cylinder, original cylinder head, original camshaft and original air filter.
• Curve 3: settings reset to zero.

Full control of the carburetion is achieved by combining the O2 controller with the Force Master ECU. The synergy between these two devices allows the operation of the fuel system to be managed, controlled and optimised for any level of tuning developed by Malossi.

Products intended exclusively for use in competitions at designated venues, in accordance with the regulations of the relevant sporting authorities. No liability is accepted for improper use.

Compatible makes and models

• HONDA CB R 125 ie 4-stroke LC Euro 4 2018–>2021 (JC79E)
