YASUN VARIATOR HP RACE 4T

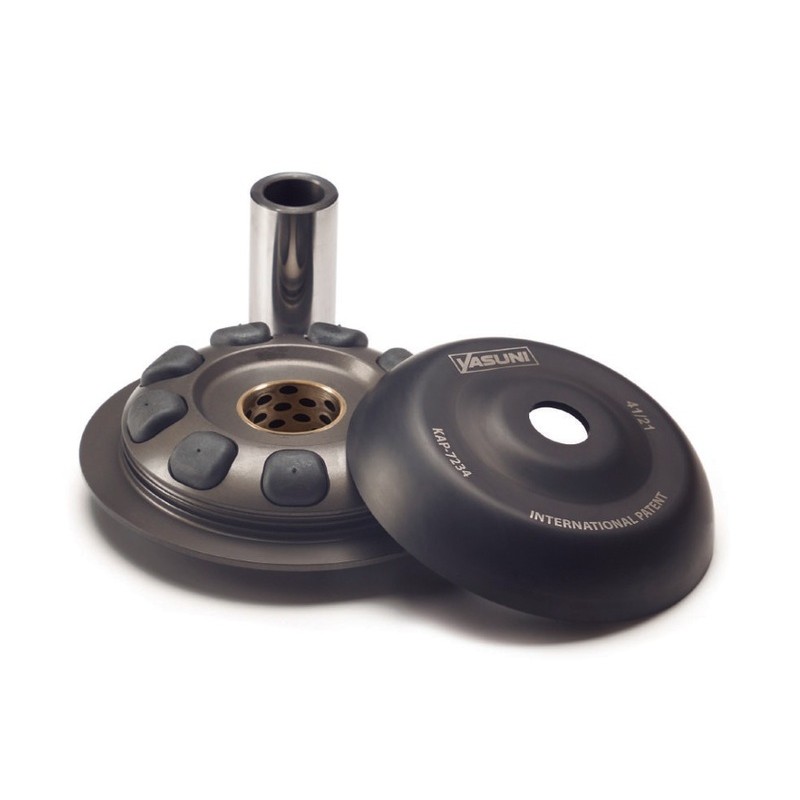

YASUNI HP RACE Variator HPR560YTM50 – Performance upgrade for the Yamaha TMAX 560 Euro 5

The YASUNI HP RACE Variator has been specially developed for the Yamaha TMAX 560 Euro 5 (from 2023) and delivers maximum performance across the entire rev range. Thanks to its innovative design and high-quality materials, this variator ensures significantly improved acceleration, optimised torque and a higher top speed.

The precisely tuned system transmits throttle commands directly to the rear wheel, enabling particularly dynamic and controlled handling. According to the manufacturer, the variator improves performance across all rev ranges and offers a significantly more direct response. :contentReference[oaicite:0]{index=0}

Performance Highlights

• Significantly better acceleration compared to the standard variator
• Improved torque in the mid-range
• Higher top speed thanks to optimised gear ratios
• Noticeably more direct throttle response and quicker response
• Engine braking effect for greater control when decelerating

Technology & Construction

• CNC-machined aluminium (6000 series) with ceramic coating
• Stainless steel ramp plate to reduce friction
• Patented fibre bushing (B32) for maximum efficiency
• Weights made from high-tech plastic with molybdenum
• Optimised design for reduced wear and long service life

Technical specifications

• Vehicle: Yamaha TMAX 560 Euro 5 (from 2023)
• Roller diameter: 32 mm
• Number of rollers: 16
• Roller weight: 11 g
• Materials: aluminium, stainless steel, molybdenum components

Riding characteristics

The YASUNI HP RACE variator ensures smoother power delivery, a more precise riding feel and noticeably better control – both in city traffic and during sporty riding. The combination of a shorter gear ratio in the lower range and a longer gear ratio at high speeds ensures optimum performance in every riding situation. :contentReference[oaicite:1]{index=1}

Conclusion: The HPR560YTM50 is the ideal choice for all TMAX riders who want to unlock the full potential of their scooter – with more acceleration, more control and maximum riding enjoyment.
