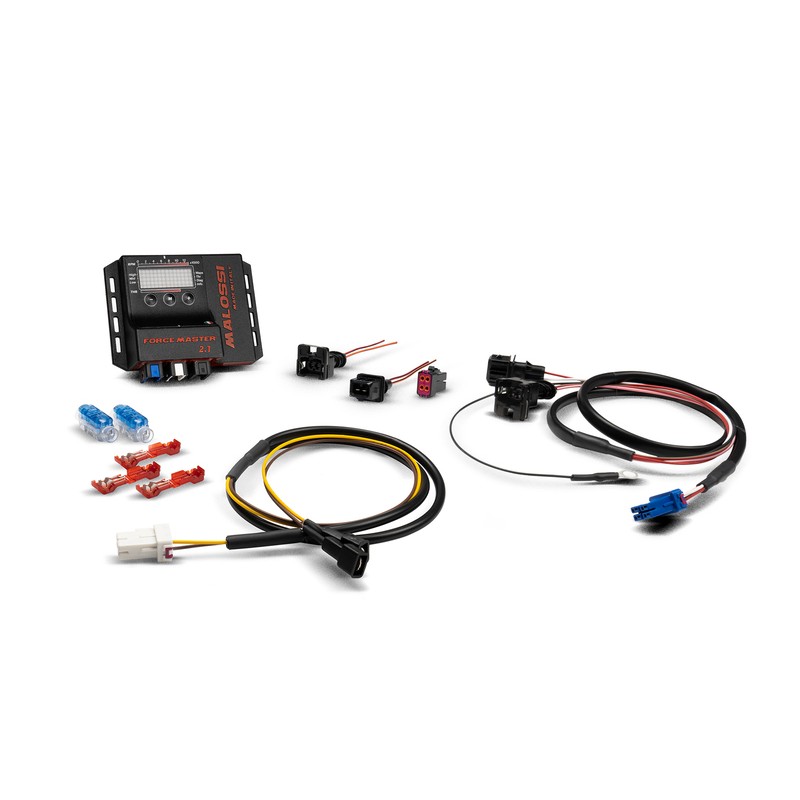

MALOS ECU BOX

Description

With its brand-new design, the Force Master 2.1 unit is even easier to set up. Malossi has always aimed to make its products more user-friendly and easier to use. The Force Master 2.1 is a modern, high-performance solution that is perfectly suited to the electronic management of vehicle performance.

Thanks to its interface compatible with K and CAN communication lines, its new user interface and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal complement for optimising engine performance.

With no functional limitations, it allows you to exceed the limit imposed by the original rev limiter and fully exploit the engine’s potential.

Technical specifications

Fuel mixture adjustment: ± 14% at low, medium and high revs

Rev limiter: 9,250 rpm

Operating temperature range: from -30 °C to +80 °C

Minimum operating voltage: +7 V

Maximum operating voltage: +16 V

Average current draw: less than 200 mA

Protection rating: IP65

Available programmes

The Force Master 2.1 features four different programmes, suited to the following engine configurations:

Curve 0 – 125 cc vehicles

• Original exhaust
• Malossi cylinder
• Original cylinder head
• Original camshaft
• Original air filter

Curve 1 – 125 cc vehicles

• Malossi exhaust with DB Killer
• Malossi cylinder
• Original cylinder head
• Original camshaft
• Original air filter

Curve 2 – 150 cc vehicles

• Original exhaust
• Malossi cylinder
• Original cylinder head
• Original camshaft
• Original air filter

Curve 3 – 150 cc vehicles

• Malossi exhaust with DB Killer
• Malossi cylinder
• Original cylinder head
• Original camshaft
• Original air filter

Complete fuel management

Complete fuel management is achieved through the combination of the O2 controller and the Force Master unit. The synergy between these two devices allows the fuel delivery profile to be managed, controlled and optimised, regardless of the tuning level offered by Malossi.

Warning

This product is intended exclusively for use in competition on racetracks or in venues specifically designated for this purpose, in accordance with the regulations of the relevant sporting authorities.

Malossi accepts no liability in the event of improper use of the product.

Compatible makes and models

PIAGGIO

Model: PIAGGIO LIBERTY iGet 125 ie 4-stroke Euro 3 (M893M)

Please note: to be fitted exclusively with the Malossi cylinder ref. 3115695.

Model: PIAGGIO LIBERTY iGet 125 ie 4T Euro 4 (2017–2020)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: PIAGGIO LIBERTY iGet 150 ie 4-stroke Euro 3

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: PIAGGIO LIBERTY iGet 150 ie 4-stroke Euro 4 (2017–2020)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: PIAGGIO LIBERTY S iGet 125 ie 4-stroke Euro 4 (2017–2020)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: PIAGGIO LIBERTY S iGet 150 ie 4-stroke Euro 4 (2017–2020)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

VESPA

Model: VESPA Primavera iGet 125 ie 4T Euro 4 (2016–2020)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: VESPA Primavera iGet 150 ie 4-stroke Euro 4 (2016–2020) (MA12M)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: VESPA Sprint iGet 125 ie 4-stroke Euro 4 (2016–2020) (MA13M)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.

Model: VESPA Sprint iGet 150 ie 4-stroke Euro 4 (2016–2020)

Please note: to be fitted exclusively with the Malossi cylinder, ref. 3115695.
